1958 - 1964 Chevrolet 348 & 409 Engine Parts

NEW!!!.... AVAILABLE NOW ! Speed-Port 6000 & Speed-Port 7000 , brand new aluminum single 4 barrel, high rise, single plane, "air gap" configuration, high performance / racing intake manifold for 348 & 409 engines ! You can click HERE to access the page with updates on development, and production. Slated for release in early March, 2009.

348 & 409 Forged Racing Pistons !

We always have of the most popular combinations in stock...

( IE, 348/409 crank .030", 409 .030", 409/427 crank .030"/.060", ect. )

Above is our very popular 10.5:1 348 piston for use with a 409 crank and big block Chevy ( 6.135" rods ). Provides 377+ cubic inches, depending on your bore size.

These are typical of the 10:1 compression pistons for 474-496 ( 4" stroke ) cubic inch engines.

Our most popular model... the 10.5:1 compression 409 with a 3.76" stroker crank ( 446-464 CID )

This is the 11:1 compression stock ( 3.5" ) stroke piston, all available in sizes up to .125" over. Note the maximum weight removal on the "inside" picture.

We designed these pistons in 2003, and since that time, have been progressively selling more and more... now being the piston of choice by many of the established W engine builders ! They incorporate our own design in the dome and valve relief and are made exclusively for A Bruneau Performance Enterprises by Ross Racing Pistons*... they are not available anywhere else !

I carefully studied various designs which have been used over the years. I feel that we have come up with a combination that employs the most effective features of past designs, with the advantages of modern forging and machining techniques.   The intake valve relief has been cut at an angle to the exhaust valve ( also serves as the exhaust valve relief ) as was the Jahns Power Slot. This is done to enhance the intake signal during valve overlap... the bigger the cam, the more effective it is.... BUT, unlike the Jahns piston, the dome is machined flat and the oposite side of the piston has the rounded outer belvelle ( as the original TRW forging ) which offsets the side-load under combustion pressure This condition is further remedied by the 4 degree taper from the dome to the top ring land.

The pistons with 10 or 10.5:1 compression have a valve relief designed to accommodate net cam lift / duration up to .600"/260 deg. @ .050". The 11 or 11.5:1 models will accept any camshaft up to .700" lift and 270 duration @ .050". Pistons with 12:1 and over will accommodate ANY camshaft.

Intake valve relief in 348 piston is designed to accomodate the 2.06" intake valve. 409 pistons will accommodate the 2.20" intake valves.

They are full floating wrist pins ( which are included ) and unless specified otherwise, come standard with 1/16", 1/16", 3/16 rings... but ANY ring groove is available at no extra charge.

Also, a completely unique and exclusive design wrist pin height which brings the piston .004"-.008" ABOVE THE DECK of the engine block, which provides an ideal .032"-.035" piston to head clearnce in the "squish" area... vital to enhancing the burn characteristics of the air/fuel mixture. Bottom line, THESE WILL MAKE MORE POWER THAN PREVIOUS 348/409 PISTON DESIGNS ! Ideal for use with the newer Fel Pro or Victor composition head gaskets having an average compressed thickness of .042". These pistons CANNOT be used with the original style steel shim head gaskets ( but if you are fortunate enough to have a set, the pistons certainly may be ordered with the appropriate deck clearance ).

Weight is approximately 100 grams lighter than the original TRW/GM piston.

Also, for an additional $169.00 / set, these pistons can be supplied with 70 up to 100 grams removed ! The 3.76" and 4.00" stroker pistons are now supplied in the "maximum weight removal" lightened version only. In most cases, this will allow internal balance WITHOUT the use of heavy metal. thereby greatly reducing the costs of balancing, while enhancing power and reliability.

Available in:

Any bore size is available... Standard, through: .020", .030", .038"(409 only), .040", .060", .068"(409 only), .080" .100", .125"

Regular stocking pistons are underlined

Black * indicates pump premium fuel minimum octane rating of 91

Red * indicates pump premium fuel minimum octane rating of 92-93 may add some octane booster for race use.

Blue * indicates pump premium fuel minimum octane rating of 94... recommended addition of octane booster

Pink * indicates pump premium fuel minimum octane rating of 94... with a full dose of octane booster required or race fuel such as VP C11.

Green * indicates race fuel only... such as VP C11, C12, or Sunoco Standard recommended for higher ratios

PRICING: ( full set, including wrist pins and spiral locks )

Stock 3.25" or 3.5" stroke pistons: $819.00 CDN.( + GST ) or $699.00 U.S.

Stroker 3.76" or 4.00" stroke pistons: $959.00 CDN.( + GST ) or $849.00 U.S. ( these INCLUDE the complete "maximum weight removal" process ) average weights come in at 620-650 grams.

Moly ring sets: add $169.00 CDN. or $169.00 U.S.

Maximum weight removal: add $169.00 ( recommended with all 409 pistons )

We have a number of the more common sets in stock. Special order sizes will take approximately 3 weeks for delivery. SPECIAL PRICING AVAILABLE FOR "IN HOUSE" ENGINE JOBS.

and OUR SPECIALTY.... CAMSHAFTS & VALVE TRAIN !

This is the part of your engine that will dictate what it "feels" like ! I have developed my own camshaft profile combinations in various models, from smooth idling BRAND NEW DESIGN with maximum fuel efficiency, to state of the art radical race mechanical profiles. These ARE designed by A Bruneau Performance Enterprises... and are not available anywhere else ! Custom manufactured for us by Competition Cams*.

Due to increased popularity of some of our products, we are now stocking a number of different cam profiles, along with valve springs, retainers, locks, roller rockers, ect. Shown here... centre, is our hydraulic cam and components. On the right is a complete steel billet mechanical roller cam, roller lifters, dual valve springs, Titanium retainers. and 1.7 ratio stainless small body roller rockers. These rockers are IDEAL for use with longer valves and pushrods, and will allow you to retain the stock valve covers without clearance issues.

Competition Cams* pushrods in 5/16" or 3/8"... available in stock length, up to +.150".

Our Hydraulic Profiles For use with stock type valve springs

Our Hydraulic Profiles For use with aftermarket valve springs

Our Mechanical Profiles For use with aftermarket valve springs and stock length valves

Our Mechanical Profiles For use with aftermarket valve springs and .100" longer valves

The above camshafts highlighted in "AQUA", are recommended for use with BBC 1.7 ratio roller rockers only. Actual gross lift will be reduced by appproximately .017" from above figures. Also, note that mechanical cams are rated for gross lift. Actual lift at the valve is reduced by the amount of valve lash... generally .020" - .026". Example, our part number: M-242592S, advertising a lift of .592", with the recommended 1.7 ratio rockers, after valve lash, will have a net lift at the valve, of .555". An important factor when selecting valve springs.

NEW!

Our Mechanical ROLLER Profiles For use with .100" longer valves, engines using "small port" cylinder head castings such as "817", "147", "586", "379", "333" with a minimum of port and bowl work. Max RPM shown is based on average cubic inches in the 380 range ( 348 using 409 crank ). RPM limit will be slightly lower in larger cubic inch / stroker applications. All lift figures are based on the use of 1.7 ratio roller rockers.... actual net lift at valve, after lash, is reduced by approx .018"

Our Mechanical ROLLER Profiles For use with .100" longer valves, engines using "large port" cylinder head casting numbers, "690" or "583" with a minimum of port and bowl work, or the new aluminum large port heads. All lift figures are based on the use of 1.7 ratio roller rockers... actual net lift at valve, after lash, is reduced by approx .018"

Hydraulic camshafts............ $249 CDN / $229.00 U.S.

Mechanical camshafts......... $249 CDN / $229.00 U.S.

Roller camshafts.................. please inquire for pricing

All roller cams require the installation of aftermarket 7/16" screw-in rocker studs and 1.7 ratio roller rocker arms. We use only the latest Comp Cams "full oiling" mechanical roller lifters.

Please feel free to contact us for specific recommendations for your application... E MAIL

NOW AVAILABLE ! ! !....

BRAND NEW aftermarket aluminum heads for the Chevrolet 409 W engine !

These are based on the factory large port "690" / "583" castings, and will interchange directly... accepting the use of the factory 2X4 intake ( for the restoration minded enthusiast ), or with the also new, vastly superior, single plane matching intake for 2 X 4 barrels. Flow bench research is indicating that the new heads, besides being about half the weight, will flow approximately 10-15% more, right out of the box !

Here are few photos of these brand new heads !

Shown below, the new aluminum heads compared to stock "690" heads:

PRICE:

Bare heads, with bronze guides installed......................... $2995.00 CDN / $2495.00 U.S.

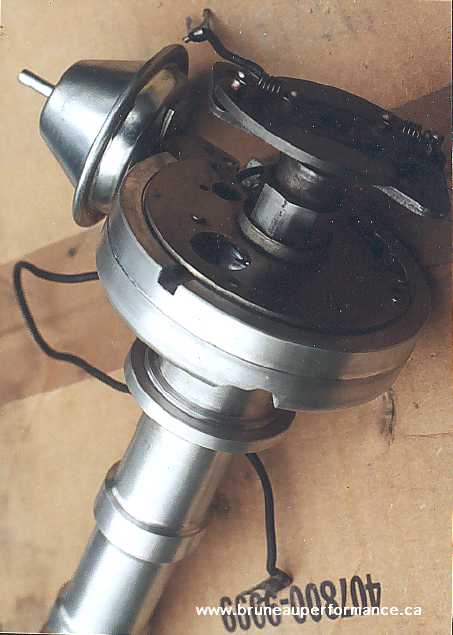

Here is our exclusive fully machined aluminum billet 348 / 409 distributor body prior to assembly. Intended to fit exactly as the stock distributor, using all factory type components ( vacuum advance, etc. ) Fitted with high precision custom bronze bushings. Yes, there has been the recent introduction of the MSD Billet distributor, which IS a good product. However, in actuality, it is simply a remachined standard V8 application Chevrolet distributor... which is too tall to clear the factory 3X2 bbl or 2X4 bbl air cleaners. Our unit is intended to fit with all factory parts.

After assembly, using a GM breaker plate, reworked shaft, cam and centrifugal advance, new vacuum advance unit and drive gear. Shipped as you see it ( no points, ect. ), so the buyer can use any ignition system which fits the original GM distributor.

Chevrolet / CDN Pontiac 348 / 409 billet aluminum distributor..... $419.00

E MAIL

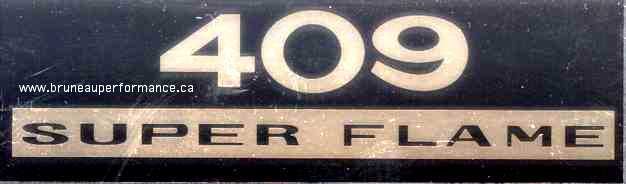

Now available !...exclusive reproduction of the Canadian Pontiac "SUPER FLAME 409" Air cleaner decal ! Due to the extremely low production numbers these decals are a bit costly at $29.00. Only one required per car. Here's a pic of the actual decal, scanned. Unfortunately it doesn't reproduce well this way. These decals ARE flawless !

Many new products are in the works

You can click on the link below to view our exclusive rear end products:

1955 - 1964 Chevrolet & Canadian Pontiac Rear End Parts and Upgrades for Street performance to All Out Drag Racing !

1 403 854 4097 / 1 403 854 4094

To order any of the items above, in Canada you can direct deposit or send a cheque drawn on a major Canadian bank.

For my friends in the U.S., the most effective method is by "International Postal Money Order". This is the PINK ONE which you get from your U.S. post Office. Please make it payable to: "Aubrey Bruneau", and mail to:

A Bruneau Performance Enterprises

Box 2229 , Hanna, Alberta, Canada , T0J 1P0

Please follow up your order with a quick E MAIL ! letting us know your address and the parts you require ! ( if you are not using "Outlook Express" or other like program, you can copy and paste nhrastocker409@bruneauperformance.ca to your email server, IE, Yahoo acct, etc ).
