1955 - 1964 Chevrolet & Canadian Pontiac rear end and suspension components for street performance, to all out drag racing !
Here you will find the exclusive products we manufacture specifically for high performance 1955 -1964 Chevrolet and Canadian Pontiacs... in particular the 1961-1964 409 cars.

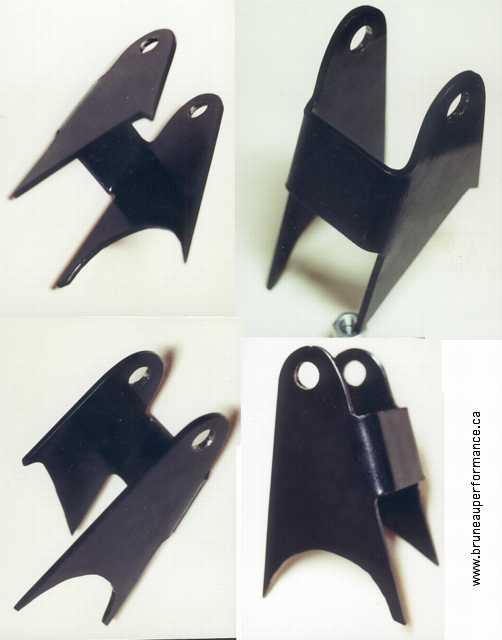

The most important "insurance measure" you can take with your high performance 1960-1964 Chevy / Pontiac ( especially 4 speed cars ) is the addition of a 2nd ( left side ) upper control arm on the rear end housing. Unavoidably neccessary if the car achieves any amount of traction, this assembly will help prevent a bent axle housing. Extremely carefully designed to appear as a factory stock installation. Requires only slight "fitting" to individual housings. Includes diagram, measurements and instructions for installation. You will need a stock upper control arm, frame bracket, shims and bolts from a "donor" parts car.
New left side upper control arm bracket.......
$55.00 E MAIL
In addition to the above bracket is this housing "web" arrangement which is recommended for cars using slicks. It consists of a simple 3/16" X 1" strap on the bottom, and two carefully contoured plates which get welded to the rear of the housing. Comes with instructions. These do require careful welding procedures.
Rear axle web kit...... $109.00 E MAIL
The finished product. Requires "fitting" to individual caps. These fit ALL 1955-1964 Chevrolet and Canadian Pontiac rear end centre sections.

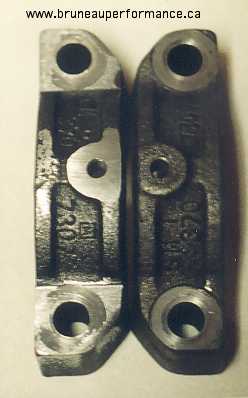

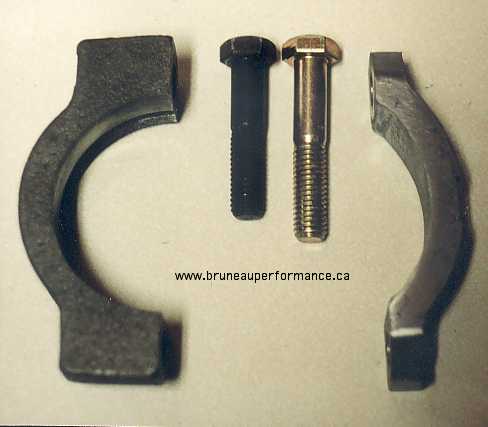

Shown here is a stock bearing cap that has been prepared to accept the girdle. Kit includes longer "grade 8" bolts, and an extended adjuster "lock" bracket.

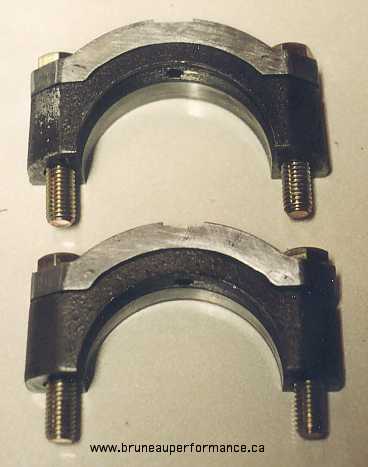

Once the housing is secured the next step is to secure those brittle differential bearing caps. This is done with our carefully machined 1/2" thick steel bearing cap girdles shown installed here. I have yet to see a broken rear end after the installation of these caps ! Very high quality. Includes new lengthened side bearing adjuster locks, longer grade 8 bolts, and instructions. A small amount of grinding / filing is required to fit individual caps.
Differential bearing cap girdles.....
$249.00 E MAIL
AND ...
This is the final word in upgrades for your 1959-1964 Chevrolet / Canadian Pontiac rear end !
The battle is OVER ! ... For real... No 12 bolt Chevy.... No 9 inch Ford... No 8 3/4 Mopar !
After relentless research and testing, we have developed this system for the early Chevy/CDN Pontiac rear which renders the unit totally sutable for virtually all types of performance useage.

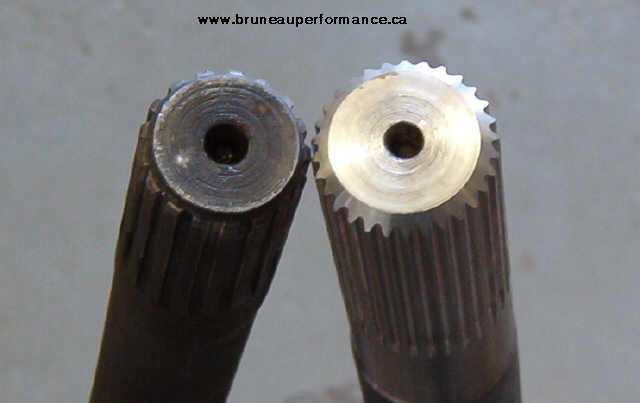

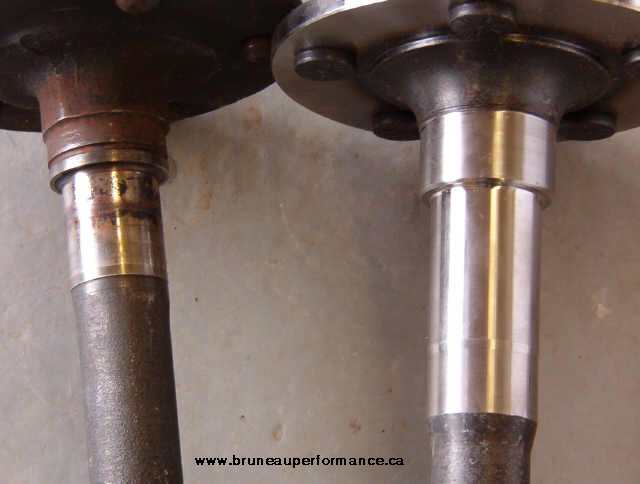

Here are the new Moser 30 spline ( Dana 44 ) axles, which are made exclusively for A Bruneau Performance Enterprises. You can see the increased spline diamter. Also, check out the bearing end ! The new axles have the diameter increased from 35 mm, to just under 39 mm.
On the left is the new bearing assembly for use with the Moser axles. Installation requires a minor "opening" of the housing end. Complete instructions are included with the kit.

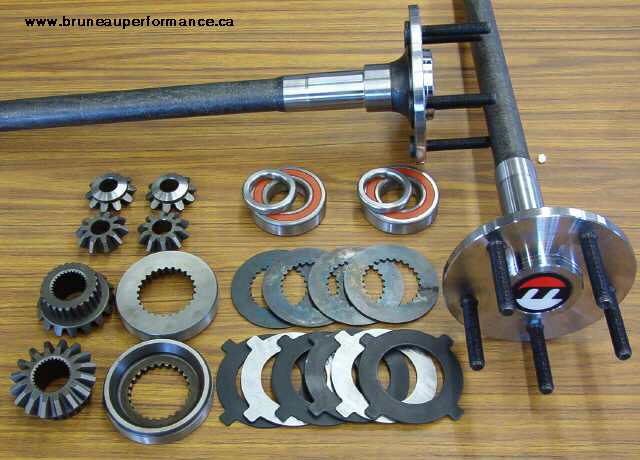

Here is the complete internal kit for upgrading the 1959-1964 Chevrolet / Canadian Pontiac rear end. It includes, new 30 spline Dana 44 side gear/spider gear assembly, new posi clutch plates, new axle bearings, and new Moser racing axles with new studs ( 7/16" or 1/2" studs ).
Total price for this kit as pictured, plus two new steel bearing retaining flanges ( replaces the original sheet metal parts on your original axles... you will not need to pull off your old bearings to re-use them )...
$1,225.00 E MAIL
The complete racing package as shown above... left upper control arm bracket, web kit, steel bearing cap girdles, and the axle / posi upgrade kit.....
$1,650.00 E MAIL
Our 30 Spline
Drag Racing Spool
For the guys who will be doing serious drag racing, we have just created our own exclusive rear end spool which takes the place of the posi differential unit. Virtually indestructable, it also is more rigid than the stock part. This will eliminate any deflection between the pinion and ring gears... thereby strengthening the entire unit and greatly improving ring and pinion life.
Custom built to order..... $695.00 E MAIL
This item is also available as part of a complete race prepared "pumpkin" assembly. With a $100.00 core charge, you can buy the complete unit outright. Please call for details and pricing.
Just click on the link below to view our 348 & 409 engine products:
348 & 409 Chevrolet Engine Parts
1 403 854 4097 / 1 403 854 4094
To order any of the items above, in Canada you can direct deposit or send a cheque drawn on a major Canadian bank.
Please send a money order bank draft, or Cashiers Cheque, in
CANADIAN DOLLARS
PLEASE make money order payable to: Aubrey Bruneau,
Box 2229 , Hanna, Alberta, Canada , T0J 1P0
A Bruneau Performance Enterprises
Box 2229 , Hanna, Alberta, Canada , T0J 1P0
Please follow up your order with a quick E MAIL ! letting us know your address and the parts you require ! ( if you are not using "Outlook Express" or other like program, you can copy and paste nhrastocker409@bruneauperformance.ca to your email server, IE, Yahoo acct, etc ).
